General

ZH series self-priming chemical centrifugal pump is the same produicts both at home and abroad， the development and production of a single stage single suction self-priming chemical centrifugal pump，the pump is applicable to transp-ort temperature 0℃~150℃，containing solid p particles less than 3mm corrosive medium.

Such as conveying medium contains more than 3mm particles or fiber，can choose our company produces the ZW series non-clogging self-prming pump.

Performance range

Flow of 1.6~ 400m'/h， head for 5~125m. The suction height is less than 5m.

According to the conveying medium is different，ZH self-priming chemical centrifugal pump contact liquid part or the material can choose cast iron，cast steel，1Cr18Ni9Ti、1Cr18Ni12Mo2Ti、316、316L materials manufacturing.

Modelillustration

ZH50-32-160A

Z——Self-Priming pump code

H——Chemical centrifugal pump code

50——Pump inlet diameter(mm)

32——Pump the liquid mouth diameter(mm)

160——Pump impeller nominal diameter(mm)

A——Cutting impeller diameter order to A，B and C said

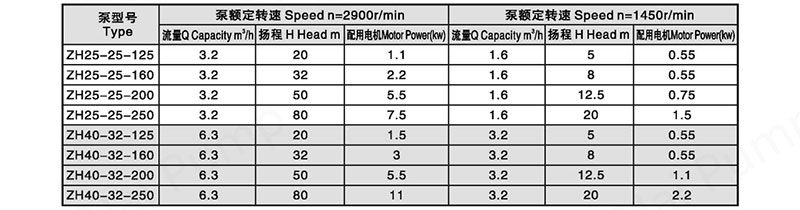

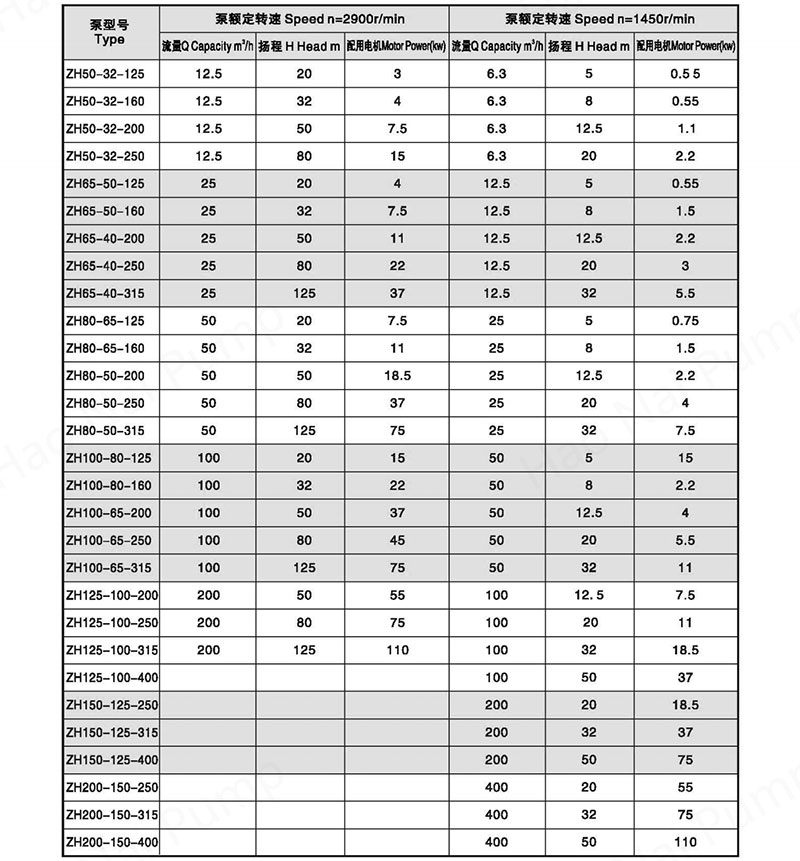

Table of property parameters
