General

Sulfur pump with small flow capacity， high delivery lift，is developed on the strength of previous sulfur acid pump，collaborated with institutes， it is characteristic of high delvery lift and small flow capacity，impossible achived by centrifugal pump，while unstable perform-ance existing during operation of volute pump. There -fore，adopt latest hydraulic design，integrating unique advantages of centrifugal pump and volute pump. It has filled in domestic gap， reached intemational adv-anced level， able to substitute for imported ones，economizing relevant investment， widely used in acid making procedure to convey liquefyde sulfur under 130-158℃， with improvement， it also can be used under other hi-temperature and insulation working conditions.

Basic type： mainly used for medium melting point is not high， after shutdown will soon solidify， such as asphalt； jacketed type： mainly used for medium tem-perature，melting point is not high， after shutdown will soon solidify， such as sulfur； non jacketed type：mainly used for medium melting point is very high or after shutdown will not solidify， such as molten salt.

Parameterrange

Capacity：Q=0.2~400

Head：H=2~5

Temperature：T=500℃

Pressure：P=1.6MPa

Under water depth：L=0.5~5m

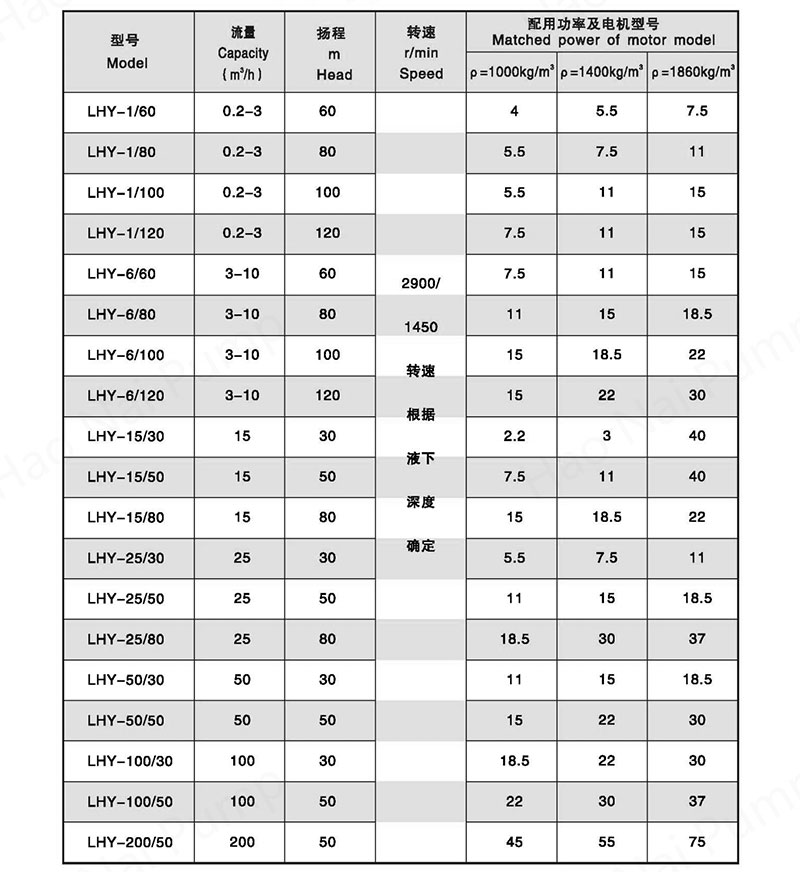

Table of property parameters
