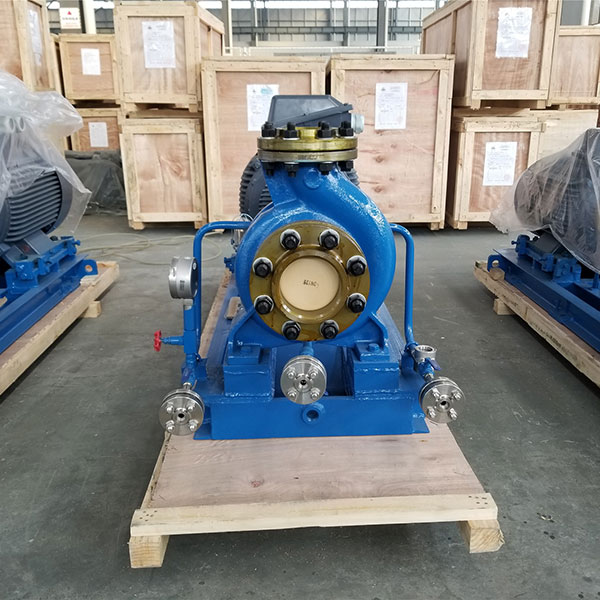

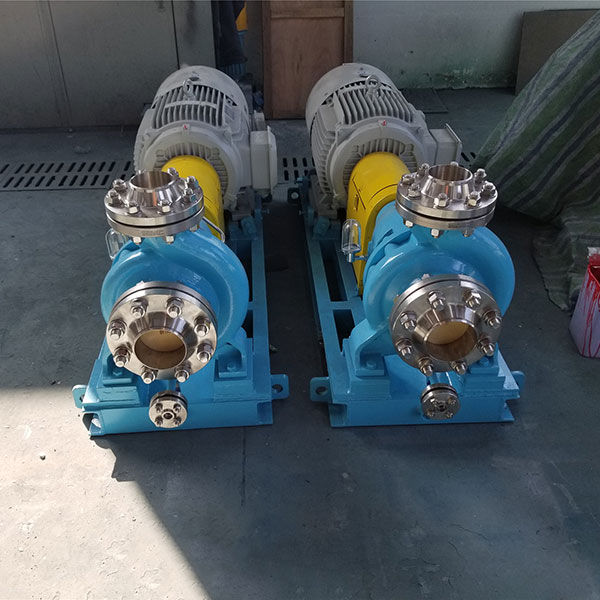

CZ series standard chemical pump

Short Description:

OverviewThe CZ series standard chemical pump is a horizontal, single-stage, single-suction centrifugal pump; its size and performance conform to DIN24256/ISO2858 standards, and is


down load to pdf

Product Details

Product Tags

Overview

The CZ series standard chemical pump is a horizontal, single-stage, single-suction centrifugal pump; its size and performance conform to DIN24256/ISO2858 standards, and is designed according to API610 (8th edition) and VDMA24297 (light/medium) specifications.

The performance range of the CZ series standard chemical pump includes all the performance of the IH series standard chemical pump. Its efficiency, cavitation performance and other indicators exceed the IH type pump, and it can be interchanged with the IH type pump.

Application

Transport low-temperature or high-temperature liquids; neutral or corrosive liquids; clean or liquids containing solid particles. Especially suitable for:

Chemical and petrochemical industries

Refineries, power plants

Paper mills and pulp industry, environmental protection projects

Sugar making, pharmaceutical industry, shipping and offshore industries, etc.

Performance

Flow rate (Q) (depending on the speed, see the performance diagram on page 2) can reach 2000m3/h

Head (H) can reach 160m

Working pressure (P) 2.5MPa

Working temperature (t) -80℃～+300℃

The characteristic curve is flat, the cavitation value is low, and the efficiency is high. These characteristics are maintained even when the load is not full.

Design features

The pressure acting on the shaft seal is balanced by the balance hole on the auxiliary blade or impeller. The shaft seal can be sealed with soft packing (cooled or not), or with single or double end mechanical seals of various structures (balanced type can be used). The ball bearing is durable and the shaft diameter is sufficient to ensure smooth operation. Some specifications of the pump body are designed as a double screw shell to balance the radial force. The bearing frame, including the shaft, impeller, stuffing box, etc., forms a combined component, so that the pump body does not need to be removed from the pipeline during maintenance (if an extended coupling is used, the motor does not need to be removed either). Flange design, using PN16, PN25 two (depending on the material difference). Moreover, it can also be used for ANSI125 pounds per square inch or 150 pounds per square inch.

Conveying medium

Sulfuric acid, nitric acid, hydrochloric acid, phosphoric acid and other inorganic and organic acids at various temperatures and concentrations.

Alkaline solutions such as sodium hydroxide and sodium carbonate at various temperatures and concentrations.

Various salt solutions.

Various liquid petrochemical products, organic compounds, and other corrosive raw materials and products.

At present, our factory's corrosion-resistant materials can meet the requirements of various media mentioned above. When ordering, please provide the details of the medium to be conveyed.

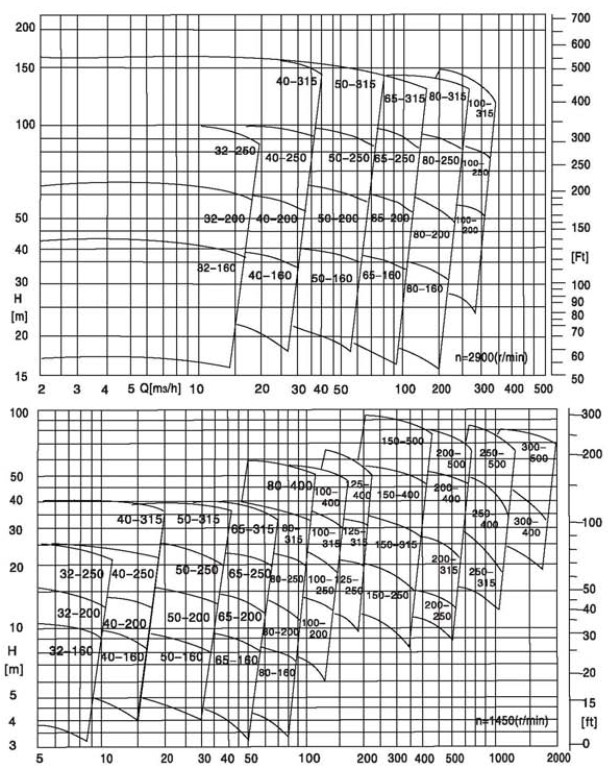

Performance range

Performance range.jpg


型号

叶轮型式

泵额定转速n=2900r/min

泵额定转速n=1450r/min

流量Q

m3/h

扬程H

m

汽蚀余量NPSH

m

效率

η

%

比重y=1.00

比重y=1.35

比重y=1.84

流量Q

m3/h

扬程H

m

汽蚀余量NPSH

m

效率

%

比重y=1.00

比重y=1.35

比重y=1.84

电机功率及型号

电机功率及型号

kw


kw


kw


kw


kw


kw


CZ32-160

A

20

36

3.1

62

4

Y112M-2

5.5

Y132S1-2

7.5

Y132S2-2

11

9

1.5

49

1.1

Y90S-4

1.1

Y90S-4

1.5

Y90L-4

B

18

32

4

Y112M-2

5.5

Y132S1-2

7.5

Y132S2-2

10

8

C

17

28

3

Y100L-2

4

Y112M-2

5.5

Y132S1-2

9

7

1.1

Y90S-4

D

15

20

2.2

Y90L-2

3

Y100L-2

4

Y112M-2

6

5

E

13

14

6

3

CZ32-200

A

20

50

2.7

51

7.5

Y132S2-2

11

Y160M1-2

15

Y160M2-2

10

13

1

47

1.5

Y90-4

1.5

Y90-4

2.2

Y100L1-4

B

18

48

11

Y160M1-2

9

12

1.5

Y90L-4

C

16

40

5.5

Y132S1-2

7.5

Y132S2-2

8

10

D

15

30

4

Y112M-2

5.5

Y132S1-2

7.5

Y132S2-2

8

8

CZ32-250

A

20

85

2.1

40

15

Y160M2-2

18.5

Y160L-2

30

Y200L1-2

11

20

0.9

37

2.2

Y100L1-4

3

Y100L2-4

4

Y112M-4

B

20

75

10

19

C

18

65

11

Y160M1-2

15

Y160M2-2

18.5

Y160L-2

9

15

2.2

Y100L1-4

3

Y100L2-4

D

15

50

7.5

Y132S2-2

11

Y160M1-2

15

Y160M2-2

8

11

2.2

Y100L1-4

CZ40-160

A

30

34

1.5

63

7.5

Y132S2-2

11

Y160M1-2

15

Y160M2-2

15

8

0.5

60

1.1

Y90S-4

1.1

Y90S-4

1.5

Y90L-4

B

28

30

5.5

Y132S1-2

7.5

Y132S2-2

11

Y160M1-2

15

7

C

16

26

5.5

Y132S1-2

7.5

Y132S2-2

14

6

1.1

Y90S-4

D

14

34

3

Y100L-2

5.5

Y132S1-2

12

4

CZ40-200

A

34

50

2.4

60

11

Y160M1-2

15

Y160M2-2



16

13

1.1

57

1.5

Y90L-4

1.5

Y90L-4

2.2

Y100L1-4

B

30

48

7.5

Y132S2-2

11

Y160M1-2

15

Y160M2-2

15

12

1.1

Y90S-4

C

26

38

5.5

Y132S1-2

7.5

Y132S2-2

11

Y160M1-2

14

9

1.1

Y90S-4

1.5

Y90L-4

D

22

30

12

7

1.1

Y90S-4

CZ40-250

A

36

85

5

50

22

Y180M-2

30

Y200L1-2

45

Y225M-2

20

21

2.5

48

4

Y112M-4

5.5

Y132S-4

5.5

Y132S-4

B

34

80

18.5

Y160L-2

22

Y180M-2

37

Y200L2-2

18

20

3

Y100L2-4

4

Y112M-4

C

30

65

15

Y160M2-2

18.5

Y160L-2

30

Y200L1-2

16

15

2.2

Y100L1-4

3

Y100L2-4

4

Y112M-4

D

26

50

11

Y160M1-2

15

Y160M2-2

18.5

Y160L-2

13

12

2.2

Y100L1-4

2.2

Y100L1-4

CZ40-315

A

46

140

4

50

45

Y225M-2

55

Y250M-2



22

36

1

45

11

Y160M-4

11

Y160M-4

11

Y160M-4

B

44

130

37

Y200L2-2

45

Y225M-2



22

32

5.5

Y132S-4

C

40

100

30

Y200L1-2

37

Y200L2-2

37

Y200L2-2

20

24

4

Y112M-4

5.5

Y132S-4

D

34

80

30

Y200L1-2

37

Y200L2-2

18

18

4

Y112M-4

5.5

Y132S-4

CZ50-180

A

55

34

2.9

73

11

Y160M1-2

11

Y160M1-2

15

Y160M2-2

30

8

1.6

70

1.5

Y90L-4

2.2

Y100L1-4

3

Y100L2-4

B

50

30

7.5

Y132S2-2

25

7

1.1

Y90S-4

1.5

Y90L-4

2.2

Y100L1-4

C

45

28

5.5

Y132S1-2

7.5

Y132S2-2

11

Y160M1-2

24

6

1.1

Y90S-4

1.5

Y90L-4

D

40

18

5.5

Y132S1-2

7.5

Y132S2-2

20

4

1.1

Y90S-4

CZ50-200

A

65

55

4

72

18.5

Y160L-2





34

14

1.5

70

3

Y100L2-4

4

Y112M-4

5.5

Y132S-4

B

65

50

15

Y160M2-2

18.5

Y160L-2



32

12

2.2

Y100L1-4

3

Y100L2-4

4

Y112M-4

C

50

40

11

Y160M1-2

15

Y160M2-2

18.5

Y160L-2

30

10

1.5

Y90L-4

2.2

Y100L1-4

3

Y100L2-4

D

40

32

7.5

Y132S2-2

11

Y160M1-2

15

Y160M2-2

24

7

1.5

Y90L-4

2.2

Y100L1-4

CZ50-250

A

65

85

3

64

30

Y200L1-2

37

Y200L2-2

45

Y225M-2

34

21

1.1

59

5.5

Y132S-4

5.5

Y132S-4

11

Y160M-4

B

60

80

45

Y225M-2

30

20

4

Y112M-4

C

55

85

22

Y180M-2

30

Y200L1-2

37

Y200L2-2

28

16

3

Y100L2-4

4

Y112M-4

5.5

Y132S-4

D

45

80

15

Y160M2-2

15

Y160M2-2

22

Y180M-2

24

12

2.2

Y100L1-4

3

Y100L2-4

4

Y112M-4

CZ50-315

A

80

140

5

60







42

36

1.8

58

11

Y160M-4

11

Y160M-4

15

Y160L-4

B

75

135

55

Y250M-2





42

32

C

70

110

45

Y225M-2



40

26

11

Y160M-4

D

65

85

37

Y200L2-2

45

Y225M-2



36

20

CZ65-160

A

100

32

3

74

15

Y160M2-2

18.5

Y160L-2



50

8

1.5

68

2.2

Y100L1-4

3

Y100L2-4

4

Y112M-4

B

90

32

22

Y180M-2

48

7

C

90

24

11

Y160M1-2

15

Y160M2-2

18.5

Y160L-2

46

6

2.2

Y100L1-4

3

Y100L2-4

D

80

14

5.5

Y132S1-2

7.5

Y132S2-2

11

Y160M1-2

38

4

CZ65-200

A

100

54

3.2

73

22

Y180M-2

30

Y200L1-2

37

Y200L2-2

50

13

1

73

4

Y112M-4

4

Y112M-4

5.5

Y132S-4

B

90

50

46

12

3

Y100L2-4

C

90

40

18.5

Y160L-2

22

Y180M-2

30

Y200L1-2

42

10

3

Y100L2-4

4

Y112M-4

D

70

30

11

Y160M1-2

15

Y160M2-2

18.5

Y160L-2

36

7

2.2

Y100L1-4

2.2

Y100L1-4

3

Y100L2-4

CZ65-250

A

115

85

3.4

71

45

Y225M-2

55

Y250M-2



54

21

0.9

67

11

Y160M-4

11

Y160M-4

11

Y160M-4

B

115

75



50

20

5.5

Y132S-4

C

100

65

37

Y200L2-2

45

Y225M-2

55

Y250M-2

46

16

4

Y112M-4

5.5

Y132S-4

D

80

50

30

Y200L1-2

30

Y200L1-2

37

Y200L2-2

40

10

4

Y112M-4

5.5

Y132S-4

CZ65-315

A

135

135

5.5

66

90

Y280M-2

110

Y315S-2

160

Y315M2-2

64

32

1.3

62

11

Y160M-4

15

Y160L-4

18.5

Y180M-4

B

130

125

61

30

C

115

115

75

Y280S-2

90

Y280M-2

132

Y315M1-2

56

28

11

Y160M-4

15

Y160L-4

D

110

110

55

Y250M-2

75

Y280S-2

110

Y315S-2

54

24

E

90

85

45

Y225M-2

55

Y250M-2

75

Y280S-2

50

20

5.5

Y132S-4

11

160M-4

F

75

70

30

Y200L1-2

45

Y225M-2

55

Y250M-2

52

16

5.5

Y132S-4

CZ80-160

A

170

30

4.2

76

22

Y180M-2

30

Y200L1-2

37

Y200L2-2

75

8

2.2

70

3

Y100L2-4

4

Y112M-4

5.5


B

160

26

18.5

Y160L-2

22

Y180M-2

30

Y200L1-2

70

7

3

Y100L2-4

4

Y112M-4

C

150

22

15

Y160M2-2

18.5

Y160L-2

70

5

2.2

Y100L1-4

D

130

16

11

Y160M1-2

15

Y160M2-2

18.5

Y160L-2

65

4

2.2

Y100L1-4

2.2

Y100L1-4

CZ80-200

A

150

50

3.8

79

37

Y200L2-2

45

Y225M-2

55

Y250M-2

80

12

1.9

73

5.5

Y132S-4

11

Y160M-4

11

Y160M-4

B

140

46

30

Y200L1-2

37

Y200L2-2



75

11

4

Y112M-4

5.5

Y132S-4

C

130

38

22

Y180M-2

30

Y200L1-2



65

9

3

Y100L2-4

4

Y112M-4

5.5

Y132S-4

D

110

26

15

Y160M2-2

18.5

Y160L-2

30

Y200L1-2

60

6

3

Y100L2-4

4

Y112M-4

CZ80-250

A

190

80

5

80







90

20

1.3

78

11

Y160M-4

11

Y160M-4

15

Y160L-4

B

180

75

55

Y250M-2





90

19

C

170

70

45

Y225M-2





85

17

D

150

55

37

Y200L2-2

55

Y250M-2

75

Y280S-2

75

14

5.5

Y132S-4

11

Y160M-4

E

130

47

30

Y200L1-2

37

Y200L2-2

55

Y250M-2

70

11

5.5

Y132S-4

CZ80-315

A

200

130

5.5

76.5

110

Y315S-2

180

Y315M2-2



100

32

1.3

72.5

15

Y160L-4

18.5

Y180M-4

30

Y200L-4

B

180

125

132

Y315M1-2



95

30

C

160

100

75

Y280S-2

90

Y280M-2

132

Y315M1-2

85

24

15

Y160L-4

18.5

Y180M-4

D

150

75

55

Y250M-2

75

Y280S-2

90

Y280M-2

70

18

15

Y160L-4

CZ80-400

A











105

52

1.2

63

30

Y200L-4

37

Y225S-4



B









100

50



C









90

44

30

Y200L-4



D









80

38

18.5

Y180M-4



E









75

30

18.5

Y180M-4

30

Y200L-4

CZ100-200

A

220

45

4

81

45

Y225M-2

55

Y250M-2



115

11

1.2

80

5.5

Y132S-4

11

Y160M-4

11

Y160M-4

B

200

40

30

Y200L1-2

45

Y225M-2

55

Y250M-2

100

10

C

180

30

22

Y180M-2

30

Y200L1-2

45

Y225M-2

90

8

5.5

Y132S-4

5.5

Y132S-4

D

150

25

37

Y200L2-2

80

6

CZ100-250

A

280

75

4.9

81.5

90

Y280M-2

110

Y315S-2

160

Y315M2-2

130

20

1.2

75.5

15

Y160L-4

30

Y200L-4

30

Y200L-4

B

250

70

75

Y280S-2

132

Y315M1-2

130

18

11

Y160M-4

15

Y160L-4

C

230

55

55

Y250M-2

75

Y280S-2

110

Y315S-2

120

14

11

Y160M-4

15

Y160L-4

D

200

40

37

Y200L2-2

55

Y250M-2

75

Y280S-2

100

10

11

Y160M-4

CZ100-315

A

270

135

5.5

75.5

160

Y315M2-2





132

32

1.5

72

30

Y200L-4

30

Y200L-4



B

250

130

132

Y315M1-2





120

30

18.5

Y180M-4

30

Y200L-4

C

230

100

110

Y315S-2

132

Y315M1-2



100

26

15

Y160L-4

15

Y160L-4

D

200

85

75

Y280S-2

110

Y315S-2

132

Y315M1-2

90

21

18.5

Y180M-4

CZ100-400

A











150

50

2

70

45

Y225M-4

45

Y225M-4



B









140

48

30

Y200L-4

C









120

40

30

Y200L-4

45

Y225M-4

D









100

30

18.5

Y180M-4

30

Y200L-4

CZ125-250

A











200

20

2.2

84

18.5

Y180M-4

22

Y180L-4



B









200

18

15

Y160L-4

18.5

Y180M-4



C









190

14

11

Y160M-4

15

Y160L-4



D









160

10

11

Y160M-4

15

Y160L-4

CZ125-315

A











200

30

2

79

30

Y200L-4

37

Y225S-4

45

Y225M-4

B









180

30

30

Y200L-4

37

Y225S-4

C









170

24

18.5

Y180M-4

30

Y200L-4

D









100

18

15

Y160L-4

18.5

Y180M-4

CZ125-400

A











220

50

2.2

74.5

55

Y250M-4

75

Y280S-4



B









200

48

45

Y225M-4

75

Y280S-4



C









180

46

37

Y225S-4

55

Y250M-4



D









170

42

30

Y200L-4

45

Y225M-4



E









150

36

30

Y200L-4



F









150

30



CZ150-250

A











320

17

3.5

83

22

Y180L-4

30

Y200L-4

37

Y225S-4

B









300

15

18.5

Y180M-4

C









280

13

D









260

12

15

Y160L-4

18.5

Y180M-4

30

Y200L-4

E









240

11

11

Y160M-4

15

Y160L-4

22

Y180L-4

CZ150-315

A











380

30

3

82.5

45

Y225M-4

75

Y280S-4



B









340

26

37

Y225S-4

45

Y225M-4



C









320

20

30

Y200L-4

37

Y225S-4

55

Y250M-4

D









300

17

22

Y180L-4

30

Y200L-4

37

Y225S-4

CZ150-400

A











400

48

4.3

80

75

Y280S-4

110

Y315S-4



B









340

40

55

Y250M-4

75

Y280S-4



C









300

34

45

Y225M-4

90

Y280M-4

D









260

28

37

Y225S-4

45

Y225M-4

75

Y280S-4

CZ150-500

A











420

80

2.5

78

132

Y315M1-4





B









400

70

110

Y315S-4

160

Y315M2-4



C









360

65

132

Y315M1-4



D









340

50

75

Y280S-4

110

Y315S-4

132

Y315M1-4

E









300

45

55

Y250M-4

75

Y280S-4

110

Y315S-4

CZ200-250

A











600

12

3.5

85

30

Y200L-4

37

Y225S-4



B









540

11

22

Y180L-4

30

Y200L-4



C









500

10

37

Y225S-4

CZ200-315

A











650

24

4

83.5

55

Y250M-4

75

Y280S-4



B









600

20



C









550

16

37

Y225S-4

45

Y225M-4



D









500

13

30

Y200L-4

37

Y225S-4

55

Y250M-4

CZ200-400

A











650

52

3.5

84

132

Y315M1-4





B









550

45

90

Y280M-4

132

Y315M1-4



C









500

40

75

Y280S-4

110

Y315S-4

160

Y315M2-4

D









450

30

55

Y225M-4

75

Y280S-4

110

Y315S-4

CZ200-500

A











700

75

3

81.5







B









650

65

160

Y315M2-4





C









550

55

110

Y250M-4

160

Y315M2-4



D









450

40

75

Y280S-4

110

Y315S-4

132

Y315M1-4

CZ250-315

A











950

22

5

86

75

Y280S-4

110

Y315S-4



B









900

20

90

Y280M-4



C









800

16

55

Y250M-4

75

Y280S-4



D

















CZ250-400

A











1000

44

6

83

160

Y315M2-4





B









900

38

132

Y315M1-4





C









850

30

110

Y315S-4

160

Y315M2-4



D









800

24

90

Y280M-4

110

Y315S-4

160

Y315M2-4

CZ250-500

A











1200

80

6

85







B









1100

70







C









1000

55







D









850

45

160

Y315M2-4





CZ300-400

A











1500

40

6

87







B









1400

30

160

Y315M2-4





C









1300

25

132

Y315M1-4





D









1300

20

110

Y315S-4

160

Y315M2-4



CZ300-500

A











1700

70

6

83.5







B









1500

60







C









1300

50







D









1100

40








Note:


*The impeller type should also be indicated on the pump type in the order contract, for example: select CZ40-250. The impeller type is A, which should be written as CZ40-250A.


* For pumps with flow and head values but no power values in the table, they need to be determined in person when ordering.


Leave Your Message


Write your message here and send it to us

Related PRODUCTS

Leave Your Message


Hit enter to search or ESC to close
